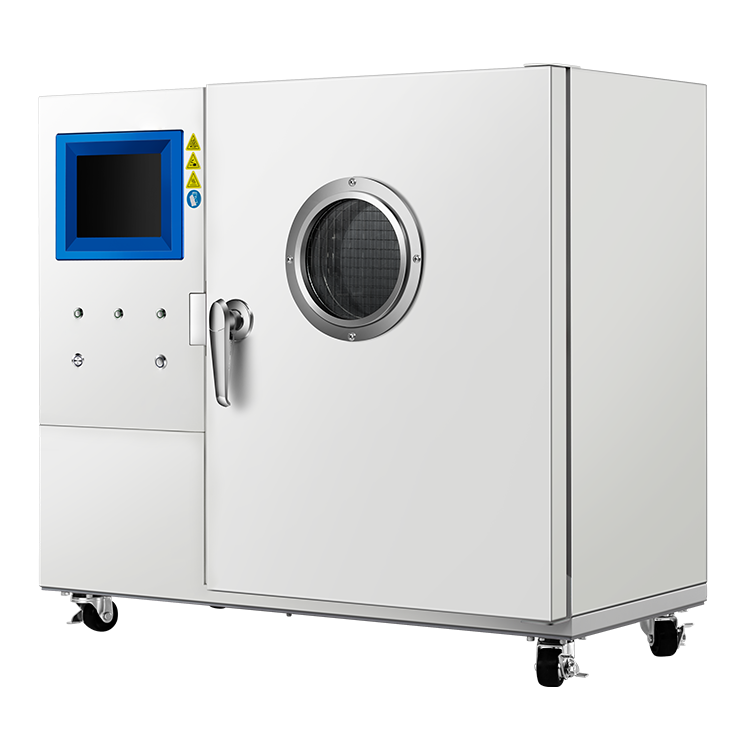

75℃ Thermal Stability / Self-Heating Substance Tester
This instrument determines whether a substance will undergo oxidative self-heating by exposing it to air at 100 °C, 120 °C, or 140 °C inside cubic wire-mesh containers with side lengths of 25 mm or 100 mm. It can also evaluate the high-temperature stability of substances to ascertain if they are too dangerous to transport. The instrument detects self-heating by maintaining the sample at 75°C for 48 hours. By monitoring the temperature difference between the test sample and an inert reference, it establishes whether the sample releases heat at 75 °C. The method is applicable to explosives, desensitized explosives, self-reactive substances, and organic peroxides.
Test Parameters
75 °C Thermal Stability, Self-Heating Substance
Applicable Fields
Hazardous Goods, Fine Chemicals, Agro-Industry
Features
Specifications
Applications
Videos
Download
Q&A
Features
Specifications
| Operating Environment | -5–45 °C, < 95% RH |
| Temperature Control Range | RT–200 °C |
| Temperature Control Accuracy | ±1 °C |
| Temperature Fluctuation | ≤ ±0.5 °C |
| Temperature Uniformity in Test Zone | Below 140 °C: ±1.0 °C, 140–180 °C: ±1.5 °C, 180–200 °C: ±2.0 °C |
| Thermocouple Measurement Range | -40–1000 °C |
| Temperature Measurement Resolution | 0.1 °C |
| Temperature Measurement Precision | ±1.5 °C or ≤ ±0.004|t| |
| Response Time | 0.5 s |
| Temperature Measurement Accuracy | Below 300 °C: ±2.5 °C, Above 300 °C: ±0.75% of reading |
| Standard Timing Range | 0–240 h |
| User-defined Timing Range | 0–480 h |
| Timing Accuracy | ±0.01 s |
| Timing Display Resolution | 1 s |
| Oven Capacity | ≥ 27 L |

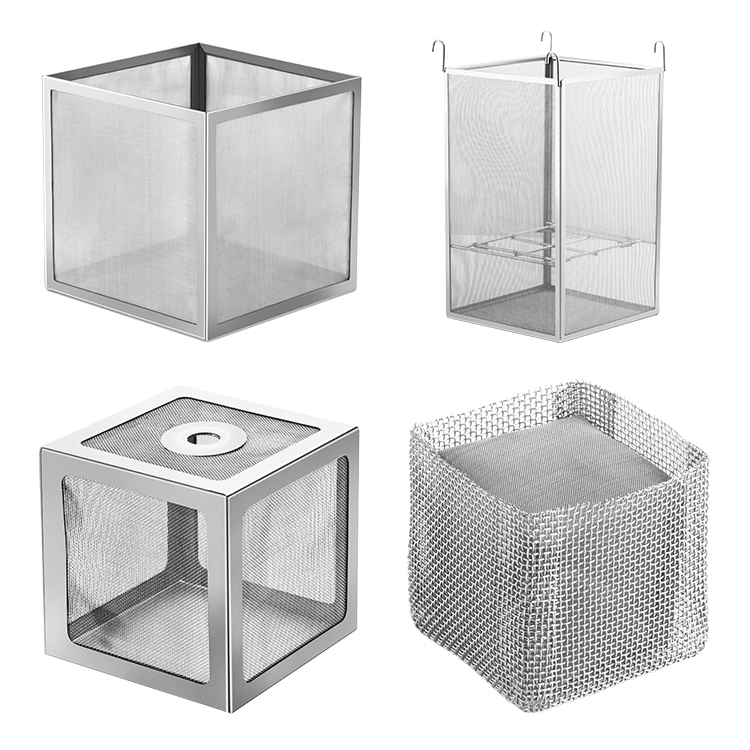

| Self-Heating Test Mesh Basket Dimensions | 25 mm and 100 mm side-length cubes |

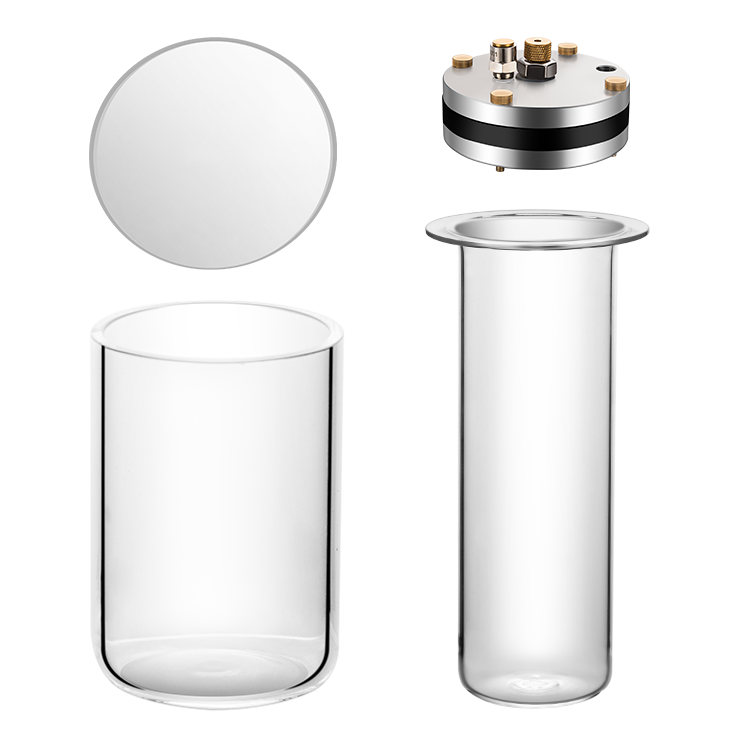

| 75 °C Test Container Dimensions (Φ × H) | (50.5 ± 0.5) mm × 150 mm |
| Internal Chamber Dimensions | 350 mm × 350 mm × 400 mm |
| Safety Valve Opening Pressure | 60 kPa |
