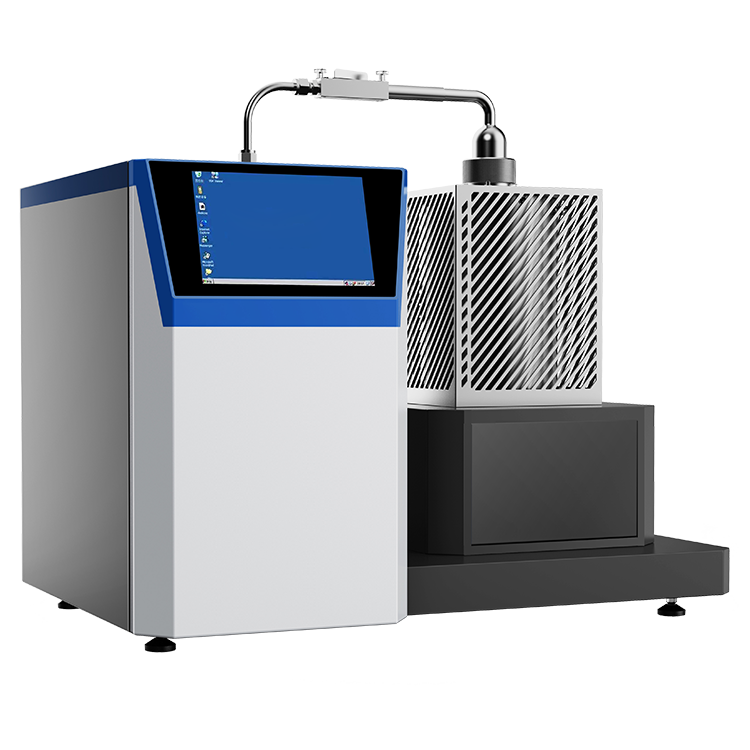

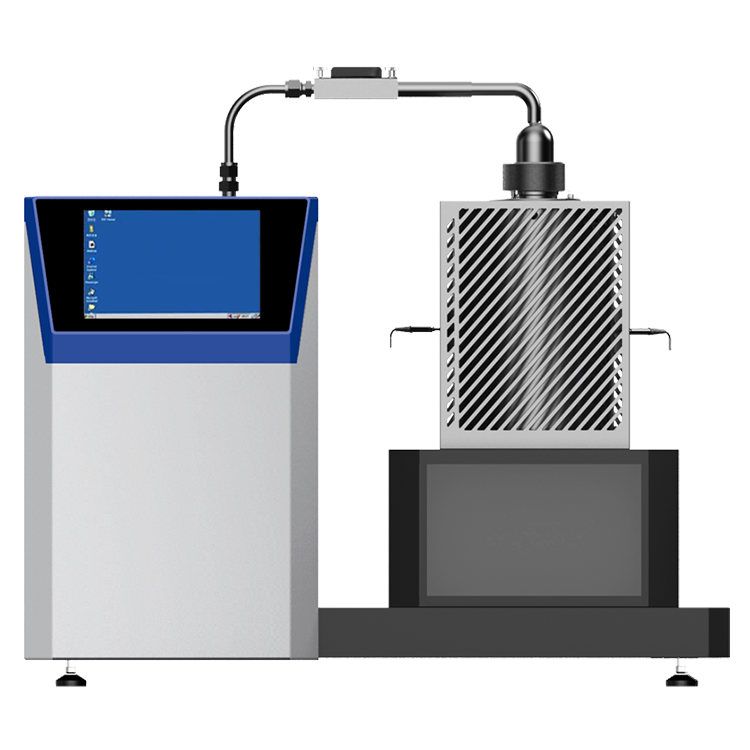

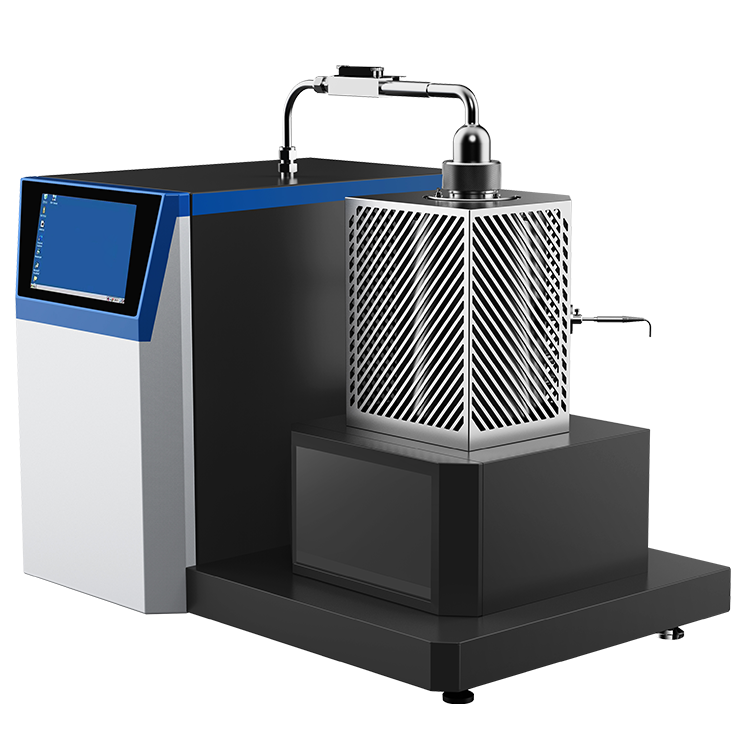

Dust Cloud Minimum Ignition Temperature Tester
The MITC-1000AE is a professional tester that determines the ignition sensitivity of dust clouds under specific heating conditions. It is designed for dust explosibility assessment in facilities processing materials such as aluminum powder, zinc powder, plastics, synthetic chemical intermediates, wheat flour, sugar, wood dust, dyes, Bakelite ash, milk powder, tea dust, tobacco powder, coal dust, and plant fibers. The apparatus precisely measures the minimum ignition temperature of dust clouds.
Test Parameters
Minimum Ignition Temperature
Applicable Fields
Combustible Dust
Features
Specifications
Applications
Videos
Download
Q&A
Features
Built-in international testing standards for both standardized and customizable parameter testing
Fuzzy PID temperature control algorithm ensures high-precision temperature management
Dedicated temperature sensor calibration interface for easy adjustment and correction
Godbert-Greenwald furnace with integrated quartz tube ensures reliable heating performance
Furnace chamber made of vacuum ceramic fiber for superior thermal insulation
Ambient temperature/humidity monitoring with automatic environmental data logging
Remote operation capability ensures operator safety during experiments
User hierarchy management enables multi-level access control
Plug-and-play USB interface for seamless data transfer
Professional industrial design with clean aesthetics
7-inch color touchscreen displays real-time experimental progress
Standards: ASTM E1491-06, EN 50281-2-1, GB/T 16429, IEC 61241-2, ISO/IEC 80079-20-2
Specifications
| Operating Environment | 5–45 ℃, < 85% RH |
| Temperature Range | RT–1000 °C |
| Heating Time | ≤20 min (RT–500 ℃) |
| Temperature Stability | ±5 ℃ |
| Temperature Accuracy | ±3 ℃ |
| Temperature Precision | ±0.1 ℃ |
| Dust Injection Pressure | 0–100 kPa |
| Pressure Accuracy | ±5% |
| Gas Storage Chamber Volume | 500 mL |
| Ambient Temperature Range | -10–60 ℃ |
| Ambient Humidity Range | 5-95% RH |
| Interfaces | USB × 2 |
| Power Supply | 220 VAC, 50 Hz |
| Power Consumption | 2600 W |
| Dimensions (W×H×D) | 670 mm × 400 mm × 590 mm |
