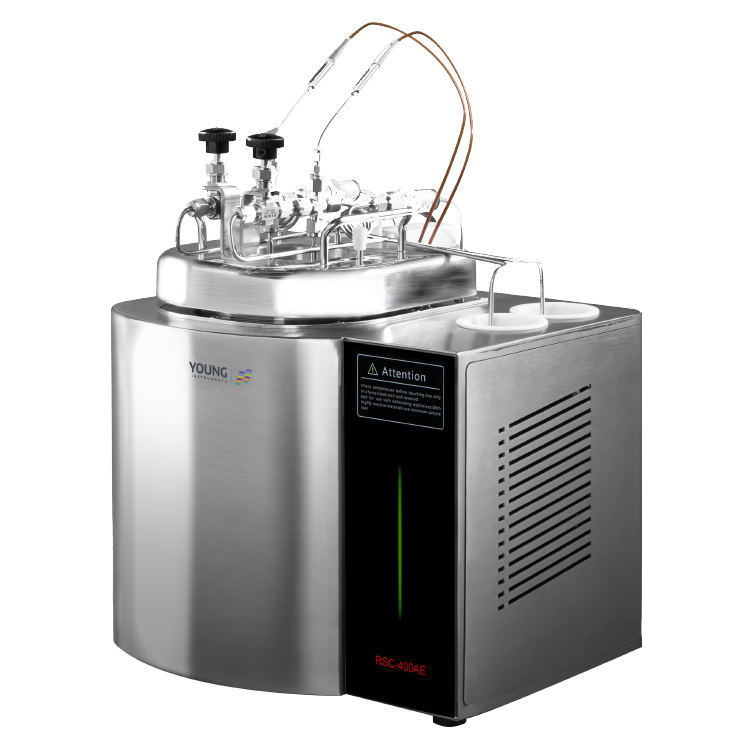

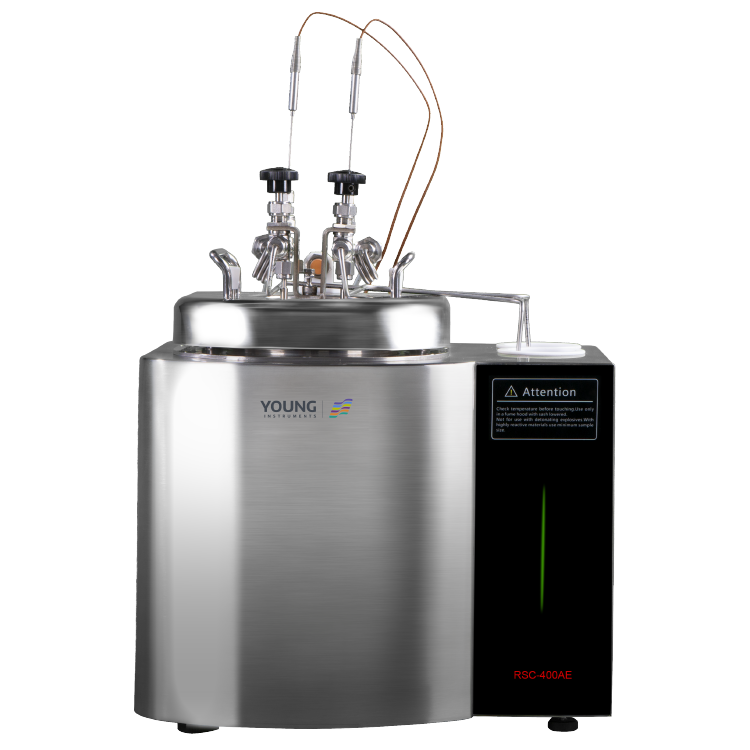

Rapid Screening Calorimeter
RSC400A E is a professional testing instrument designed for rapid evaluation of reaction heat hazards. It is widely used in chemical, pharmaceutical, and research applications for fast screening of chemical stability and identification of potential reaction hazards.
Test Parameters
Reaction onset temperature, exothermic temperature rise, specific heat release, gas generation
Application
Hazardous chemicals | Fine chemicals
Features
Specifications
Applications
Videos
Download
Q&A
Features
Dual-channel design for higher testing efficiency and improved accuracy
Large sample capacity and pressure data capability not available with DSC/DTA
Key components sourced from internationally recognized brands to ensure long-term stable operation
Supports constant-temperature mode, scanning mode, and dual-gradient scanning mode
Professional data analysis software enables identification of temperature/pressure onset points, peak temperature/pressure, temperature/pressure rise rates, and reaction heat
Experiment status indication with overpressure and overtemperature alarm functions
Rapid furnace cooling after testing via inert gas purging
Automatic furnace lid locking; the lid can only be opened when internal pressure and temperature return to the safe range
Professional industrial design with a clean and robust appearance
Specifications
| Operating environment | (5–40)°C, <85% RH |
| Temperature control range | Room temperature to 400°C |
| Heating rate | (0.5–10)°C/min |
| Temperature resolution | 0.01°C |
| Pressure range | (0–20) MPa |
| Pressure resolution | 1 kPa |
| Detection sensitivity | 1% DTBP @ 6 mL toluene |
| Sample cell volume | 8 mL |
| Sample cell material | Stainless steel, titanium, Hastelloy (optional) |
| Interface | RJ45 |
| Power supply | AC 220 V / 50 Hz |
| Power | 800 W |
| Dimensions | 310 mm × 280 mm × 350 mm |
| Weight | 15.5 kg |
