UN Recommendations on the Transport of Dangerous Goods – Manual of Tests and Criteria, Section 13.5.1, Test 3(b)(i): BAM Friction Apparatus
Complies with the above standards and their equivalent national or industry standards.

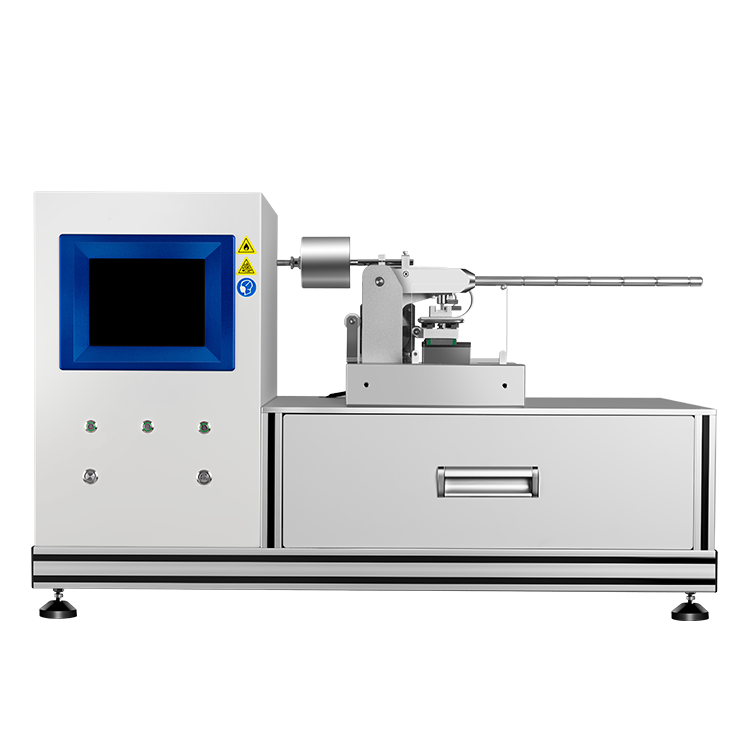

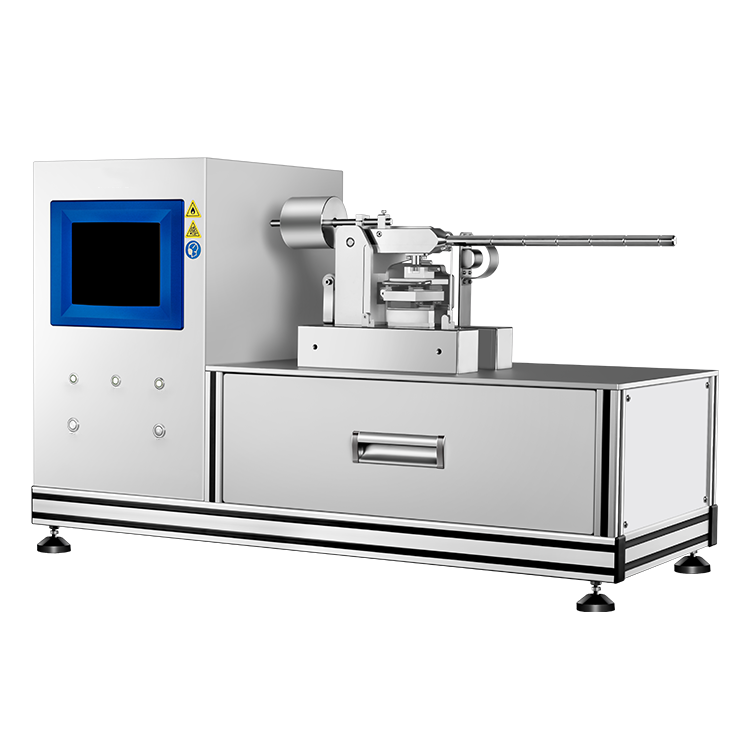

BAM Friction Sensitivity Tester
This instrument employs the BAM pendulum-porcelain rod method to determine friction sensitivity of energetic materials. The sample is placed between a porcelain rod and plate, subjected to friction induced by a standard pendulum blow. The system detects explosive reactions and calculates probability values for sensitivity grading, production facility hazard division assessment, and transport classification.
Test Parameters
Friction Sensitivity, Explosion Probability
Application
Civil Explosives, Military Industry, Chemicals
Features
Specifications
Standards
Applications
Videos
Features
Embedded processor with Windows CE OS.
8-inch LCD touchscreen for real-time test status visualization.
High-precision motion control unit for precise speed regulation and accurate positioning of the porcelain plate.
Adjustable porcelain plate speed for enhanced operational flexibility.

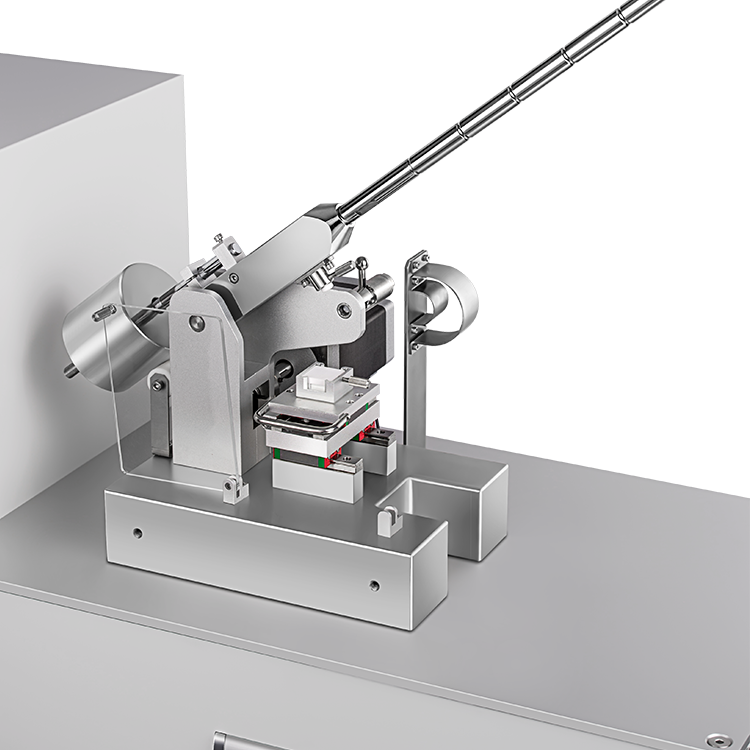

Corrosion-resistant friction/load mechanism with reinforced safety.
Fully automated operation requiring no manual intervention; supports parameter configuration, data storage, and report viewing.
Optional wireless video surveillance system for real-time test monitoring.
Features a front-mounted transparent safety shield. An optional exhaust system can be equipped to evacuate explosive gases or dust. The detection unit remains unobstructed and exposed to the atmospheric environment, ensuring a natural oxygen supply.
Specifications
| Operating Environment | -5–45 °C, <95% RH |
| Motor Speed | 140 ± 3 rpm (at maximum load) |
| Load Range | 1–2–5–10–20–40–60–80–120–160–240–360 N |
| Load Accuracy | ±0.038 N (1 N), ±0.048 N (2 N), ±0.08 N (5 N), ±0.21 N (10 N), ±0.45 N (20 N), ±0.49 N (40 N), ±0.22 N (60 N), ±0.27 N (80 N), ±0.32 N (120 N), ±0.37 N (160 N), ±0.43 N (240 N), ±0.48 N (360 N) |
| Sample Holder Dimensions | A cylindrical measure (Ø 2.3 mm × D 2.4 mm) is used for powdery substances, while a rectangular measure (aperture 2 × 10 mm, wall thickness 0.5 mm) is used for paste-like and viscous substances |
| Screen Mesh Specification | 35 mesh (optional) |
| Porcelain Surface Roughness | 9–32 μm |

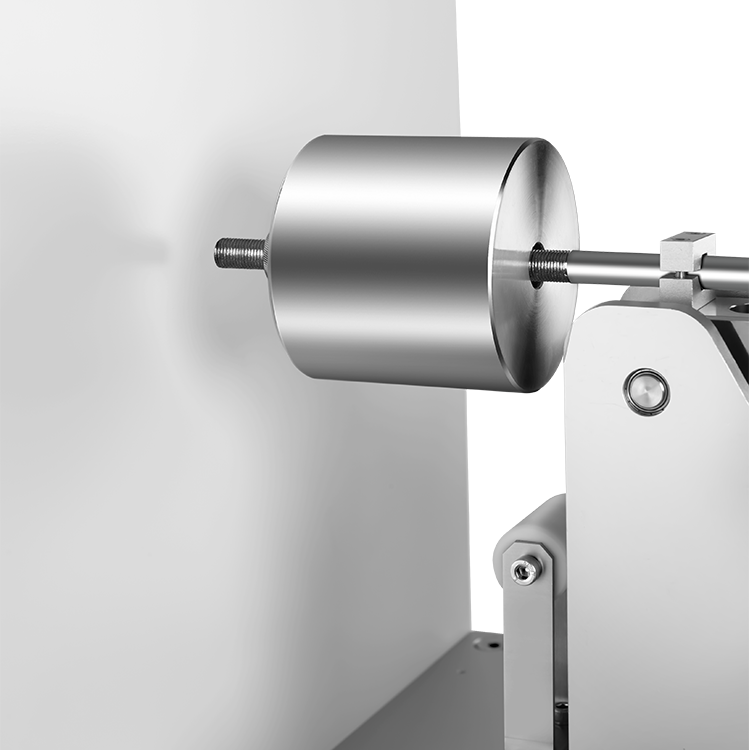

| Distance between Weight and Porcelain Rod Centers | 11 cm, 16 cm, 21 cm, 26 cm, 31 cm, 36 cm |
| Plate Travel Distance | 10 mm |
| Plate Dimensions (L × W × H) | 25 mm × 25 mm × 5 mm |
| Rod Dimensions (Ø × L) | 10 mm × 15 mm |
Applications
No information!
Videos
No information!
Download
No information!
Q&A
What types of materials can be tested with this instrument?
It is suitable for powdered, paste, and gel-like substances. Different measuring cups are provided to match material form.
Is the test process fully automatic?
Yes. The entire test is automated, including parameter setup, operation, data storage, and report review, with no manual intervention required.
Can the load be adjusted during testing?
The system supports multiple fixed load levels from 1 N up to 360 N, allowing flexible selection based on test requirements.
How accurate is the load control?
Load accuracy varies by level, with precision ranging from ±0.038 N at 1 N to ±0.48 N at 360 N.
Is real-time monitoring available?
Yes. An optional wireless video monitoring system can be installed to observe the test process in real time.
