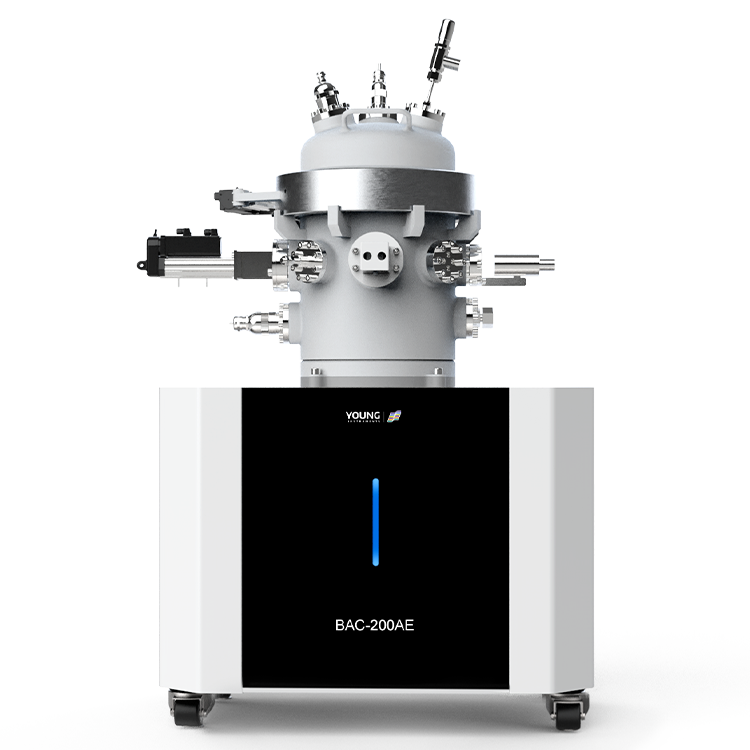

Small Battery Adiabatic Calorimeter
and testing teams to perform comprehensive safety performance evaluation.
Test Parameters
Thermal runaway onset temperature | Maximum thermal runaway rate | Adiabatic temperature rise
Applications
Lithium-ion batteries
Features
Specifications
Applications
Videos
Download
Q&A
Features
Self-heating detection sensitivity far exceeds the 0.02 °C/min standard threshold, with exceptional adiabatic performance.
Integrated adiabatic thermal runaway–gas evolution analysis with optional real-time camera for gas behavior recording and mechanism studies.
200 mm × 250 mm chamber covers full range of pilot-scale cell formats.
Modular design enables both battery material thermal stability testing and cell-level testing for cross-scale thermal safety assessment.
Heating wire auxiliary heating with baseline calibration and intelligent algorithms improves experimental efficiency by up to 5× for rapid high-risk formulation screening.
Compact footprint requires no site modifications; deploys rapidly in university labs, R&D centers, and battery plant design departments.
Dynamic sealing structure rated to 3 MPa per GB/150 enables sealed-condition nail penetration testing for extreme scenario safety assessment.
Comprehensive active and passive safety systems: rupture disc, pressure relief valve, audible and visual alarms, emergency stop button, furnace lid anomaly detection, and dual overtemperature protection.
Precise thermodynamic and kinetic parameter characterization including specific heat capacity, charge/discharge heat generation, and GB/T 36276 adiabatic temperature rise.
Built-in differential temperature baseline database with online thermocouple consistency calibration.
Pressure/temperature–video synchronized monitoring for full experimental process visibility.
Specifications
| Adiabatic Furnace Dimensions | 200 (Diameter) × 250 mm (Depth) |
| Temperature Control Range | RT–450°C, optional low-temperature module to –40°C |
| Self-Heating Detection Sensitivity | 0.01–0.02 ℃/min, adjustable via software |
| Adiabatic Tracking Rate | 0.02–25°C/min |
| Temperature Difference between Furnace and Sample in Constant Temperature | ≤0.5°C |
| Working Pressure | 0–3 MPa |
| Calorimetric Chamber Pressure Relief Vent | Included |
| Rupture Disc | Included |
