Differential Scanning Calorimeter

DSC-40BE

DSC-40AE

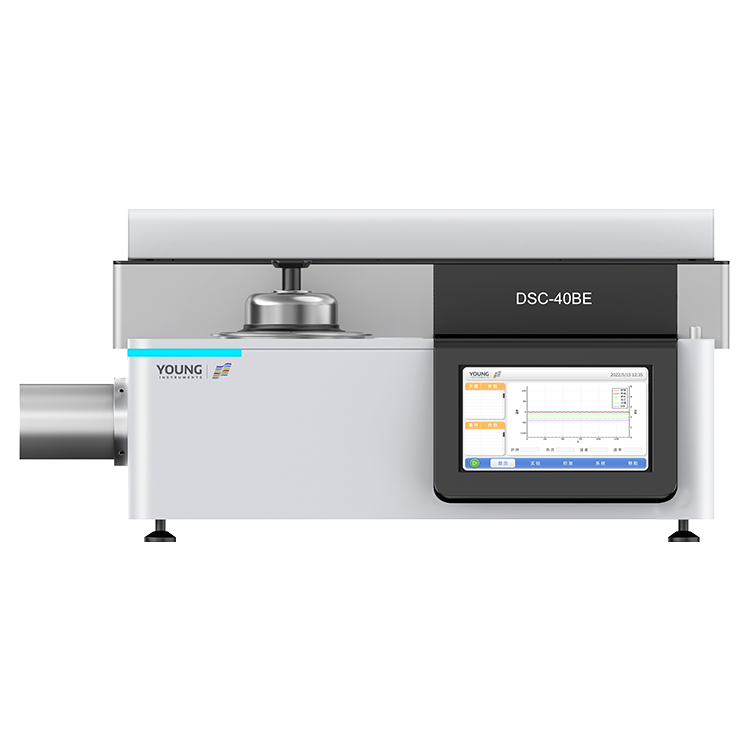

The DSC-40BE is a conventional thermal analysis instrument based on the heat flux principle. It measures the difference in heat flow per unit time between a sample and a reference material as a function of temperature or time under programmed temperature control. Requiring only milligram-level sample quantities, the instrument determines key thermal analysis parameters, including enthalpy, melting temperature, crystallization temperature, glass transition temperature, specific heat capacity, purity, oxidation induction period, thermal stability, and Arrhenius kinetic constants.

Test Parameters

Thermodynamic and Kinetic Analysis

Applicable Fields

Polymers, Biopharma, Advanced Materials, Petrochemicals, Energy Materials, Food

info@zealinstruments.com

Features

Specifications

Standards

Applications

Videos

Features

Supports ultra-low temperature operation down to -90 °C, enabling sub-zero phase transition and thermal stability analysis.

Equipped with a mechanical refrigeration system that provides stable cooling without reliance on external liquid nitrogen.

Features an integrated silver furnace design to enhance heat transfer efficiency and reduce sample-reference interference.

Incorporates a high-sensitivity heat flux sensor for precise micro-thermal signal detection and improved dynamic response.

Provides cooling, heating, and isothermal modes to support flexible thermal program control for diverse materials.

Delivers high baseline stability (≤100 µW) to ensure reliable quantitative thermal analysis.

Includes an HD touchscreen interface for intuitive and efficient laboratory operation.

Specifications

Furnace Temperature Range	RT–700°C
Temperature Range in Isothermal Mode	RT–400 °C
Heating Scan Rate	0.05–200 K/min
Scan Rate Deviation	±1%
Phase Transition Temperature Accuracy	±0.1 K
Phase Transition Temperature Repeatability	±0.02 K
Enthalpy Measurement Accuracy	±0.8%
Enthalpy Measurement Precision	±0.08%
Baseline Stability	100 µW
Baseline Repeatability	40 µW
Heat Flow Display Resolution	0.1 µW
Heat Flow Peak-to-Peak Noise	8 µW
Indium Peak Height / Half-Width	20 mW/K
Heat Flow Measurement Range	±750 mW
Sampling Frequency	50 Hz
Gas Control Module	3 lines; inert/oxidizing, static/dynamic; 2 lines with controllable flow rate (0 – 300 mL/min)
Power Supply	AC 220 V / 50 Hz
Power Consumption	450 W
Dimensions	490 × 535 × 435 mm
Weight	35 kg
Low-Temperature Module (Optional)	Furnace Temperature Range: -90–550 °C; Cooling Rate: 0.1–100 °C/min; Cooling Rate Deviation: ±1%
Auto-Sampling System (Optional)	Sample Positions: 60; Positioning Accuracy: ±0.05 mm

Applications

No information!

Videos

No information!

Download

No information!

Q&A

What temperature range does DSC-40BE support?

From -90 °C to 550 °C.

Is it suitable for pharmaceutical or biological samples?

Yes. Its low-temperature capability supports sensitive material studies.

Does it require liquid nitrogen?

No. It uses mechanical refrigeration.

Can it perform oxidation induction time (OIT) testing?

Yes. Fully compliant with relevant ASTM and ISO standards.

When should I choose DSC-40BE over DSC-40AE?

Choose BE if sub-zero or low-temperature testing is required.

ASTM E794-24: Standard Test Method for Melting and Crystallization Temperatures by Thermal Analysis

ASTM E793-24: Standard Test Method for Enthalpies of Fusion and Crystallization by Differential Scanning Calorimetry

ASTM E1269-24: Standard Test Method for Determining Specific Heat Capacity by Differential Scanning Calorimetry

ASTM E2253-26: Standard Test Method for Temperature and Enthalpy Measurement Validation of Differential Scanning Calorimeters

Complies with the above standards and their equivalent national or industry standards.
