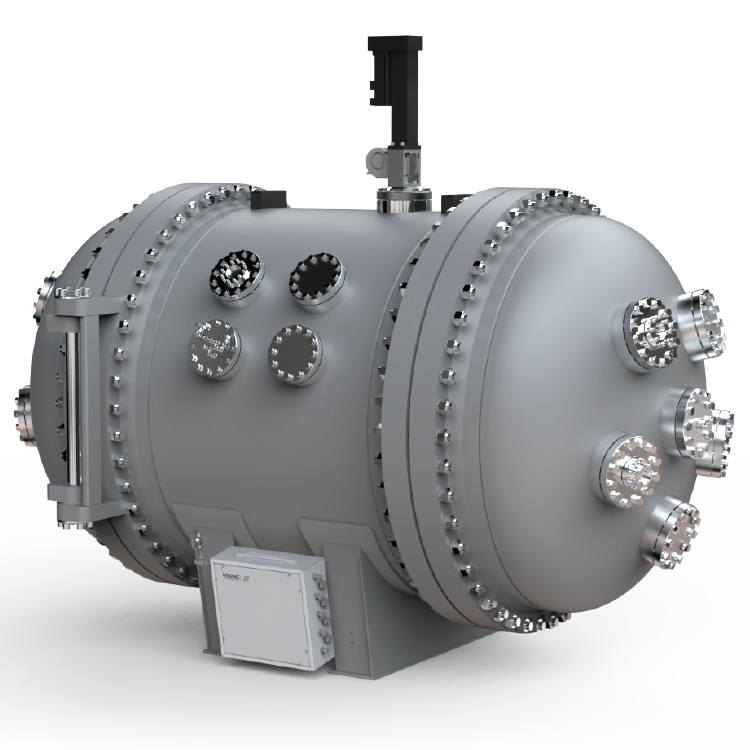

Large Battery Adiabatic Calorimeter
The BAC-1000AE is engineered for large-format battery cells, modules, and partial pack-level assemblies with long sides up to 1500 mm. Featuring a 1000 mm diameter adiabatic furnace and ±1000 A current capacity, it is specifically designed for high-capacity battery systems requiring module-scale thermal runaway and gas generation analysis under realistic electrical loading conditions.
Test Parameters
Thermal Runaway Onset Temperature, Maximum Rate of Temperature Rise, Adiabatic Temperature Rise, Specific Heat Capacity, etc.
Applicable Fields
Battery Pack, Battery Cell
Features
Specifications
Applications
Videos
Download
Q&A
Features
The 1000 mm large-diameter furnace accommodates large prismatic cells, battery modules, and structural battery assemblies for module-level thermal evaluation.
The ±1000 A high-current capability enables high-power charge/discharge heat generation testing and severe electrical abuse scenarios under realistic load conditions.
Integrated adiabatic thermal runaway and gas generation analysis allows simultaneous acquisition of temperature rise, gas volume, and pressure evolution data.
The high-precision self-exothermic detection sensitivity of 0.01–0.02 ℃/min ensures accurate identification of thermal runaway onset and self-heating behavior.
The auxiliary heating wire system enhances baseline stabilization and significantly reduces experimental preparation time.
A comprehensive safety architecture including bursting discs, pressure relief valves, and multi-level alarm systems ensures safe operation during high-energy module testing.
Specifications
| Adiabatic Furnace Dimensions | 1000 mm (Diameter) × 1200 mm (Depth) |
| Self-exothermic Detection Sensitivity | 0.01–0.02 ℃/min, adjustable via software |
| Temperature Difference between Furnace and Sample in Constant Temperature | ≤1 °C |
| Temperature Control Range | RT – 300 °C, with a low-temperature module reaching -25 °C |
| Sealed Canister Pressure Range | 0–2 MPa |
| Temperature Tracking Rate | 0.02–15 °C/min |
| Maximum Nail Penetration Stroke | Up to 200 mm (through software settings) |
| Maximum Current-carrying Capacity of Charge/Discharge Electrode Posts | -1000–1000 A |
