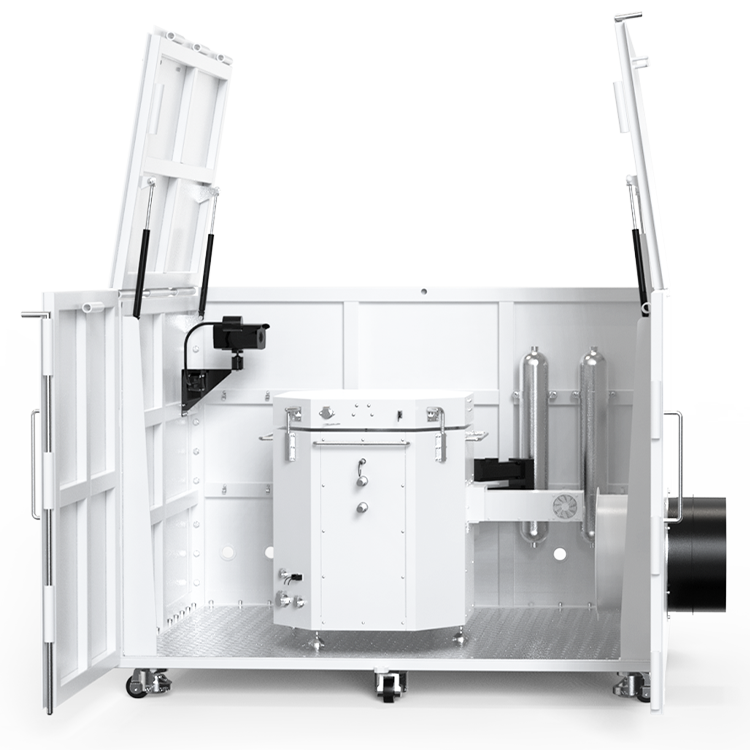

Large Battery Adiabatic Calorimeter
The BAC-420BE is optimized for battery thermal testing under ambient and sub-zero conditions. Supporting cell and module formats up to 600 mm, it includes a standard liquid-nitrogen cooling module enabling operation down to -25 °C, making it suitable for cold-climate battery safety evaluation.
Test Parameters
Thermal Runaway Onset Temperature, Maximum Rate of Temperature Rise, Adiabatic Temperature Rise, Specific Heat Capacity, etc.
Applicable Fields
Battery Pack, Battery Cell
Features
Specifications
Applications
Videos
Download
Q&A
Features

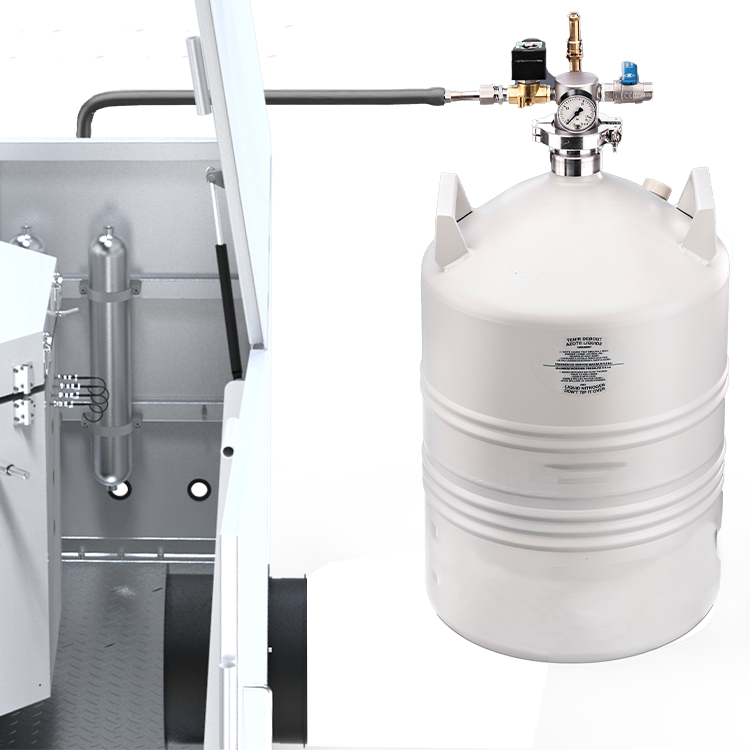

Standard -25 °C Low-Temperature Module
≤0.5 °C Furnace-Sample Temperature Difference
Adiabatic Runaway and Gas Analysis
Auxiliary Heating Wire Acceleration
Multi-Point Temperature Monitoring
Explosion-Resistant Safety Design
Specifications
| Adiabatic Furnace Dimensions | 420 mm (Diameter) × 520 mm (Depth) |
| Self-exothermic Detection Sensitivity | 0.01–0.02 ℃/min, adjustable via software |
| Temperature Difference between Furnace and Sample in Constant Temperature | ≤0.5 °C |
| Temperature Control Range | -25–300 °C, with liquid-nitrogen-tank cooling as standard configuration |
| Temperature Tracking Rate | 0.02–13 °C/min |
| Sealed Canister Pressure Range | 0–2 MPa |
| Maximum Nail Penetration Stroke | Software-configurable |
| Maximum Current-carrying Capacity of Charge/Discharge Electrode Posts | -500 to 500 A |
