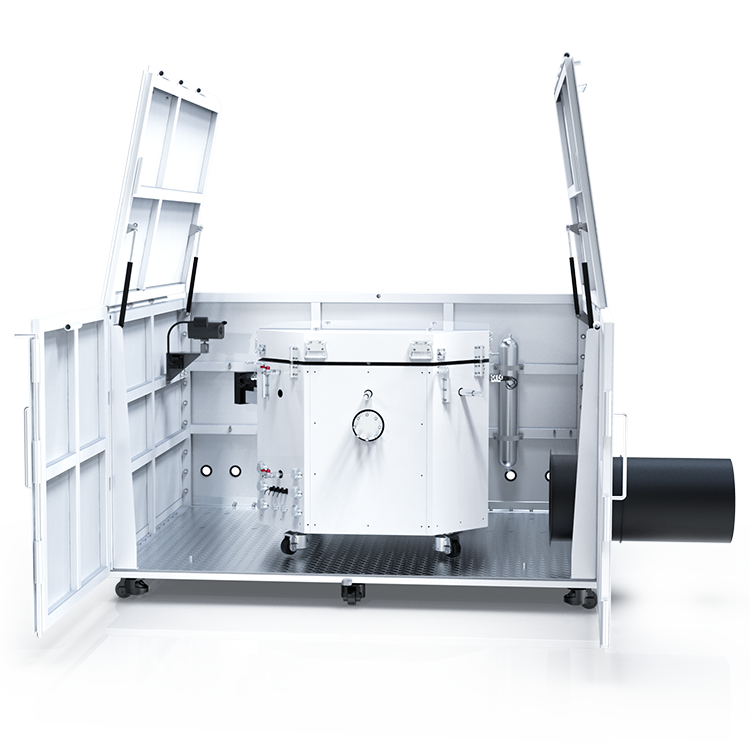

Large Battery Adiabatic Calorimeter
The BAC-800AE provides a balanced configuration for large battery cells and modules up to 900 mm in length. With an 800 mm furnace and ±500 A current range, it is ideal for laboratory-scale thermal runaway research and standard charge/discharge heat generation analysis.
Test Parameters
Thermal Runaway Onset Temperature, Maximum Rate of Temperature Rise, Adiabatic Temperature Rise, Specific Heat Capacity, etc.
Applicable Fields
Battery Pack, Battery Cell
Features
Specifications
Applications
Videos
Download
Q&A
Features
800 mm Furnace for Large-Format Cells
±500 A Laboratory-Scale Electrical Testing
Adiabatic Runaway and Gas Collection
High-Sensitivity Thermal Detection
Auxiliary Heating for Faster Baseline Stabilization
Dual Safety Explosion Protection
Specifications
| Adiabatic Furnace Dimensions | 800 mm (Diameter) × 520 mm (Depth) |
| Self-exothermic Detection Sensitivity | 0.01–0.02 ℃/min, adjustable via software |
| Temperature Difference between Furnace and Sample in Constant Temperature | ≤1 °C |
| Temperature Control Range | RT–300 °C, with a low-temperature module reaching -25 °C |
| Temperature Tracking Rate | 0.02–15 °C/min |
| Sealed Canister Pressure Range | 0–2 MPa |
| Maximum Nail Penetration Stroke | Up to 200 mm (through software settings) |
| Maximum Current-carrying Capacity of Charge/Discharge Electrode Posts | -500–500 A |
