Large Battery Adiabatic Calorimeter

BAC-420BE

BAC-420AE

BAC-800AE

BAC-800BE

BAC-1000AE

The BAC-420BE is an adiabatic calorimeter for large battery cells and small modules measuring 100mm to 600mm in length. It conducts tests including battery thermal runaway, gas generation, heat generation during charge/discharge cycles, and specific heat capacity measurement. It precisely quantifies parameters such as heat generation during lithium battery charging and discharging, specific heat capacity, thermal runaway onset temperature, maximum thermal runaway rate, adiabatic temperature rise characteristics, gas generation volume, and gas generation rate, especially under low-temperature conditions.

Test Parameters

Thermal Runaway Onset Temperature, Maximum Rate of Temperature Rise, Adiabatic Temperature Rise, Specific Heat Capacity, etc.

Applicable Fields

Battery Pack, Battery Cell

Keywords

Battery Cell Testing, Lithium-ion Battery Testing, Battery Performance Testing

info@zealinstruments.com

Features

Specifications

Applications

Videos

Download

Q&A

Features

Features adiabatic thermal runaway, auxiliary heating with heating wires, gas collection and pressure testing, thermal/electrical/mechanical abuse, specific heat capacity testing, charge/discharge heat generation testing, multi-point temperature measurement, and video surveillance.

The standard low-temperature cooling module can reduce the initial experimental temperature to -25℃.

Self-exothermic detection sensitivity is significantly better than the standard threshold of 0.02℃/min, with high adiabatic performance and minimal wall-sample temperature difference.

An innovative auxiliary heating wire solution can increase experimental efficiency by up to 5 times.

The furnace features a bursting disc and spring lock design, and includes a standard explosion-resistant box. This dual protection ensures the safety of both experimental personnel and equipment.

Standards: GB/T 36276-2023, UL 9540A, ASTM E1981-98(2012), SN/T 3078.1-2012, USABC SAND99-0497, SAE J2464-R2009, Freedom CAR SAND 2005-3123, UL 1973, GB 38031-2020

Specifications

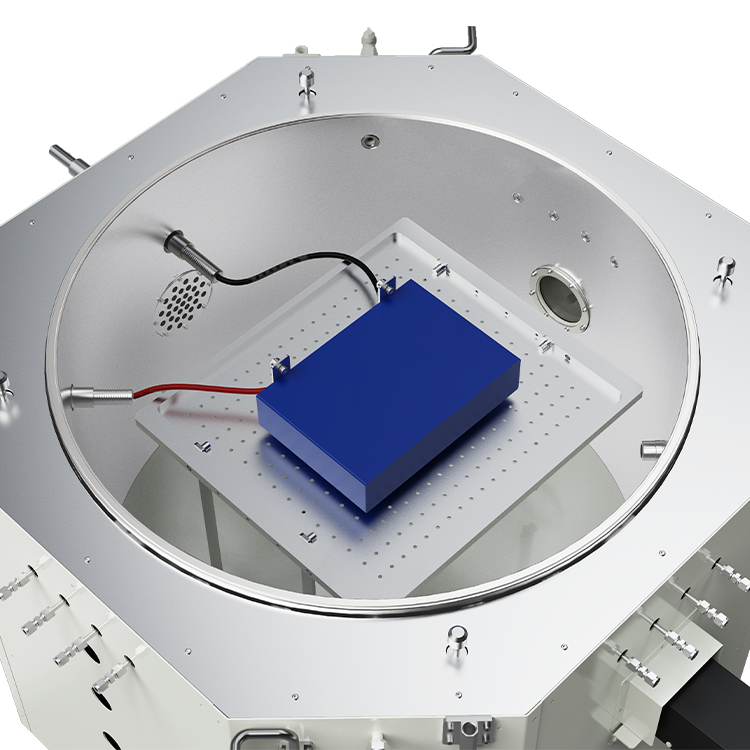

Adiabatic Furnace Dimensions	420 mm (Diameter) × 520 mm (Depth)
Self-exothermic Detection Sensitivity	0.01–0.02 ℃/min, adjustable via software
Temperature Difference between Furnace and Sample in Constant Temperature	≤0.5 °C

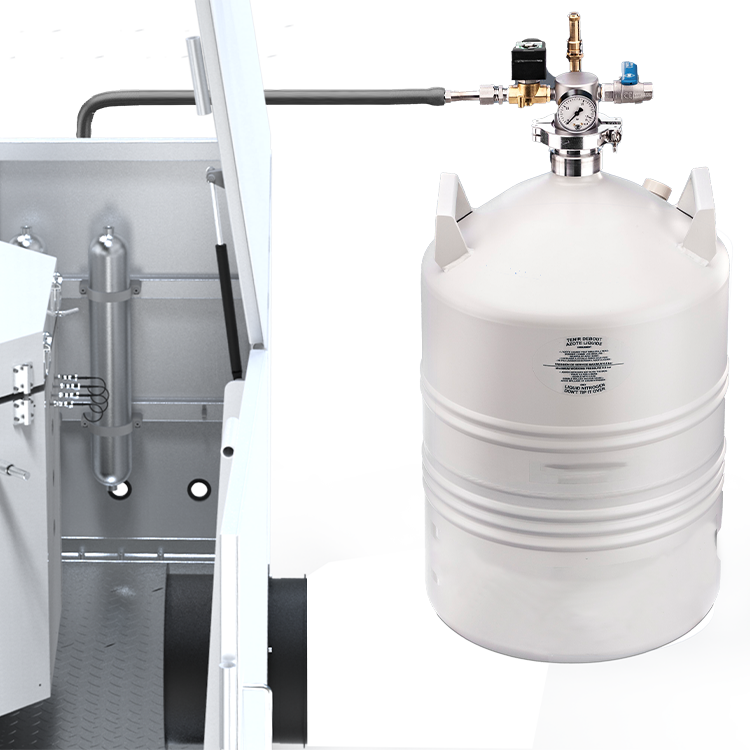

Temperature Control Range	-25–300 °C, with liquid-nitrogen-tank cooling as standard configuration
Temperature Tracking Rate	0.02–13 °C/min
Sealed Canister Pressure Range	0–2 MPa
Maximum Nail Penetration Stroke	Software-configurable
Maximum Current-carrying Capacity of Charge/Discharge Electrode Posts	-500 to 500 A

Applications

Large Battery Adiabatic Calorimeter—Quantifying Gas Explosion Risks: Lithium-ion Battery Thermal Runaway Testing

Characteristic Study in Thermal Runaway Testing: Large Capacity High Nickel Lithium-ion Batteries

Research on Thermal Runaway Characteristics of NCM9 Lithium-ion Batteries in Thermal Runaway Testing

Comparison of Isothermal Calorimeter and Battery Adiabatic Calorimeter for Lithium Battery Charge/Discharge Heat Production Measurement

Optimizing Thermal Baseline Experiments with Heating Wire Assistance for Faster Acquisition of Battery Heat Characteristics

Verification of the Impact of Clamp Types on the Thermal Runaway Test Results of HWS Batteries
