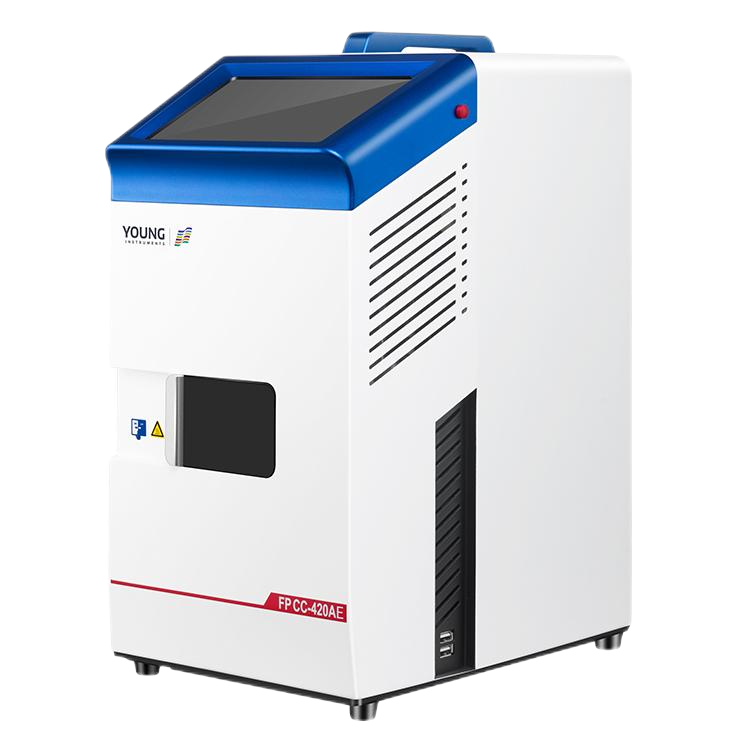

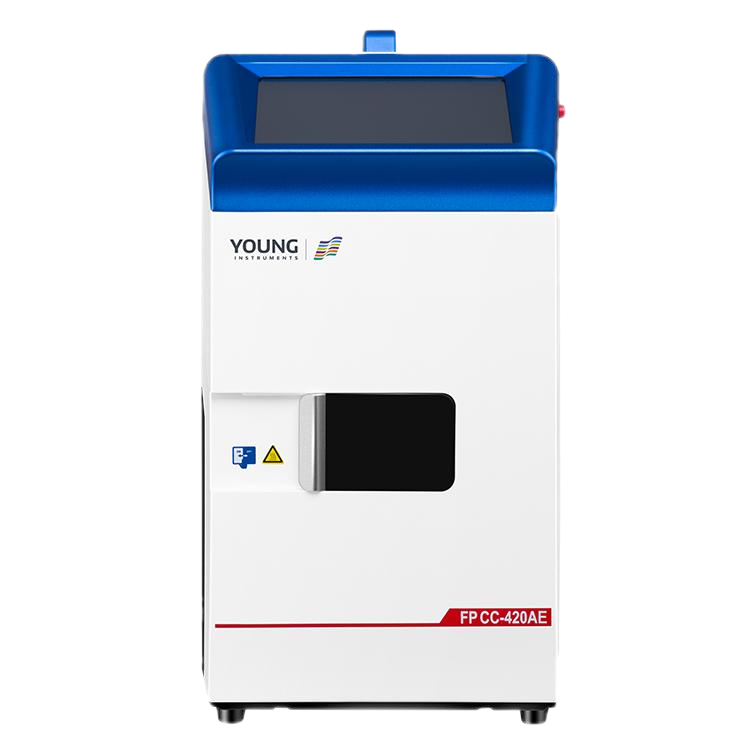

Micro Continuous Closed-Cup Flash Point Tester
FP CC-420AE is a professional instrument for combustion hazard characterization, developed based on the continuous closed cup method. It is designed for precise determination of closed cup flash point of a wide range of materials, including petroleum products, transformer oil, turbine oil, coatings, fragrances, wood preservatives, aromatic oils, animal and vegetable oils, pesticide emulsifiers, high-viscosity materials, and plasticizers. The instrument is widely used in petroleum, petrochemical, and chemical industries.
Test Parameters
Closed cup flash point
Application
Oils | Fragrances & flavors | Coatings
Features
Specifications
Applications
Videos
Download
Q&A
Features
Uses an advanced continuous closed cup flash point test method for higher accuracy and efficiency
Requires a small sample volume, reducing testing cost and contamination
Continuous closed cup operation without open flame for enhanced safety
Built-in cooling module provides a wide flash point testing range and fast cooling response
Preset standard test methods with linkage to other closed cup methods
Fully automated testing with automatic atmospheric pressure correction of flash point results
Real-time display of temperature and pressure curves for intuitive test monitoring
Test results include temperature–pressure rise curves, providing additional ignition behavior information
Key components sourced from internationally recognized brands to ensure long-term stable operation
User-level management enables access control for different user roles
Plug-and-play USB interface; optional thermal printer for convenient data management
7-inch color touchscreen with an intuitive and easy-to-use interface
Compliant standards: SH/T 0768, SN/T 3077.1, DL/T 1354, ASTM D6450, SN/T 3077.2, ASTM D7094, GB/T 261, GB/T 21615, ASTM D93, GB/T 5208, GB/T 21790, ASTM D3828
Specifications
| Operating environment | (5–40)°C, <85% RH |
| Temperature control range | (0–260)°C; (−30–260)°C (with low-temperature module); (0–420)°C (with high-temperature module); (−30–420)°C (with low- and high-temperature modules) |
| Heating rate | (2.5 ± 0.3)°C/min; (5.5 ± 0.5)°C/min; (0.5–12)°C/min (custom) |
| Temperature detection accuracy | ±0.1°C |
| Pressure detection range | (0–200) kPa |
| Sample volume | 1 mL or 2 mL |
| Ignition method | High-voltage electronic ignition |
| Stirring speed | (50–300) rpm (software adjustable) |
| Storage capacity | 5000 test results |
| Interface | RS232 ×1, RJ45 ×1, USB ×2 |
| Voltage | AC 220 V / 50 Hz |
| Power | 300 W |
| Dimensions | 225 mm × 310 mm × 415 mm |
| Weight | 13.5 kg |
Applications
Videos
Product Introduction
Micro Continuous Closed-Cup Flash Point Tester
FP CC-420AE
