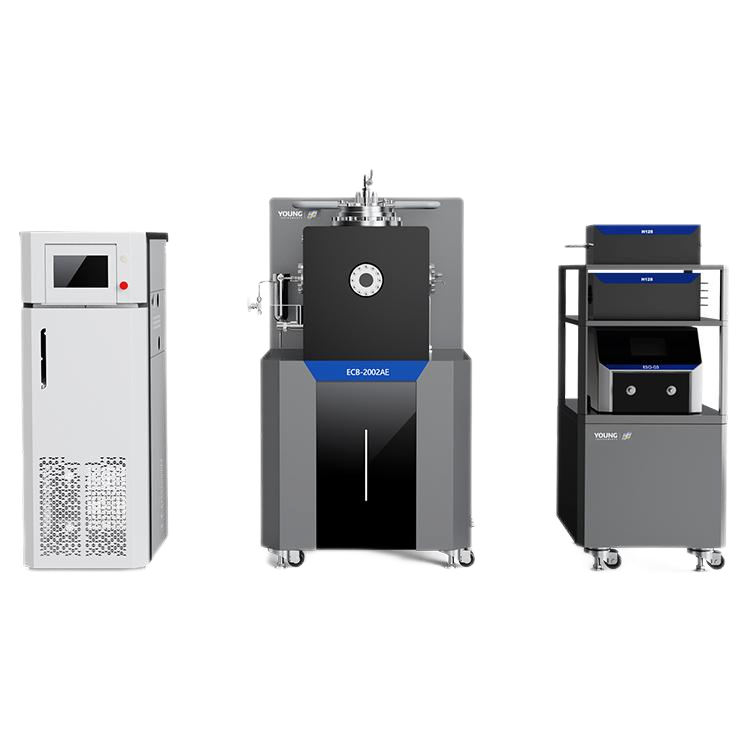

Multiphase High-Temperature High-Pressure Explosion Limit Tester
The ECB-2002AE enables simultaneous determination of combustion-explosion parameters, including lower/upper explosion limits (LEL/UEL), limiting oxygen concentration (LOC), maximum explosion pressure (Pmax), and pressure rise rate (dP/dt). Designed for in-situ analysis of multi-phase ejecta explosiveness during lithium battery thermal runaway in energy storage systems, it complies with UL9540A:2023 for gas explosion testing during battery failure events. Additionally, it assesses organic vapor explosiveness in fine chemical synthesis processes.
Test Parameters
Explosion Limits, Maximum Explosion Pressure, Rate of Pressure Rise, Limiting Oxygen Concentration
Applicable Fields
Lithium Battery, Combustible Gas
Keywords
Flammability Testing, Combustible Dust Testing, LOC Testing, KST Testing, Explosive Dust Testing
Features
Specifications
Applications
Videos
Download
Q&A
Features
Specifications
| Operating Environment | 0–45 °C, <95% RH |
| Test Container Temperature Control Range | RT – 200 °C |
| Configurable Maximum Gas Pressure | 1 bar |
| Test Container Design Pressure | ≥ 2.0 MPa |
| Explosion Pressure Sensor | ≥ 5.0 MPa, linearity of ±1.0% FS |
| Explosion Pressure Sensor Sampling Rate | ≥ 5 kHz |
| Explosion Pressure Sensor Sampling Depth | ≥ 1 Sec |
| Gas Input Channels | 3 channels |
| Maximum Stirrer Speed | 400 rpm, adjustable |
