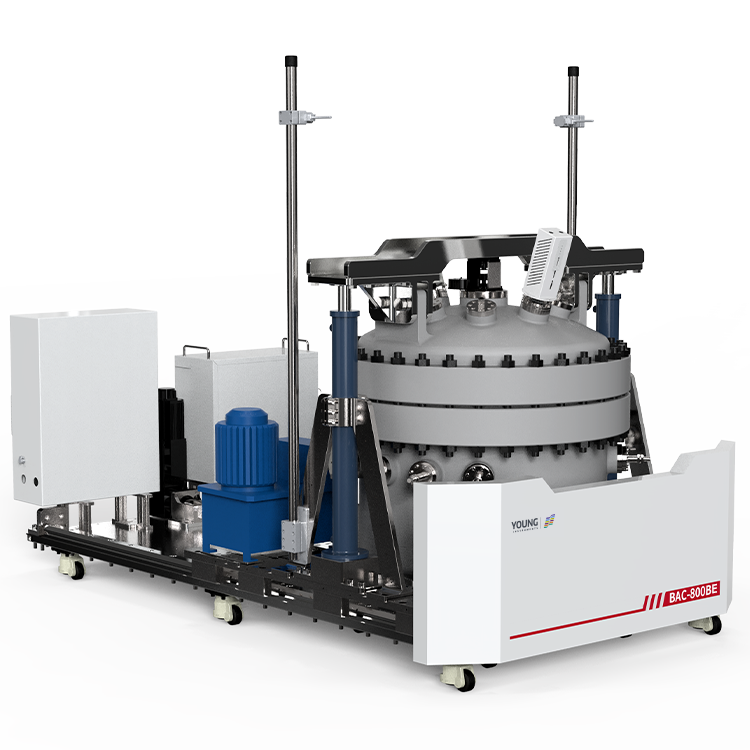

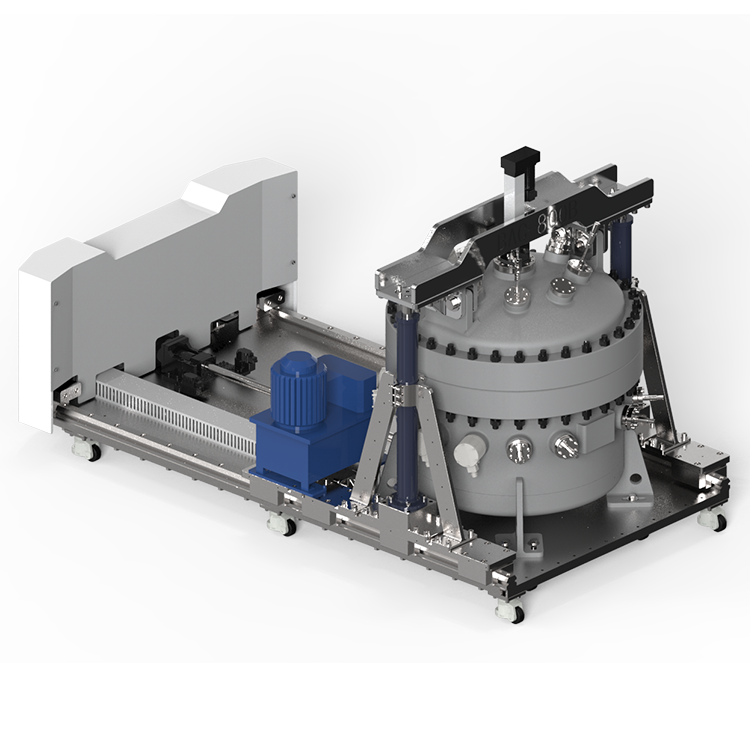

Large Battery Adiabatic Calorimeter
The BAC-800BE is designed for medium-to-large battery cells and modules up to 900 mm in length. With an 800 mm diameter furnace and ±1000 A current capacity, it is optimized for high-power electrical abuse testing and charge/discharge heat generation studies under elevated current conditions.
Test Parameters
Thermal Runaway Onset Temperature, Maximum Rate of Temperature Rise, Adiabatic Temperature Rise, Specific Heat Capacity, etc.
Applicable Fields
Battery Pack, Battery Cell
Features
Specifications
Applications
Videos
Download
Q&A
Features
±1000 A High-Power Electrical Abuse Capability

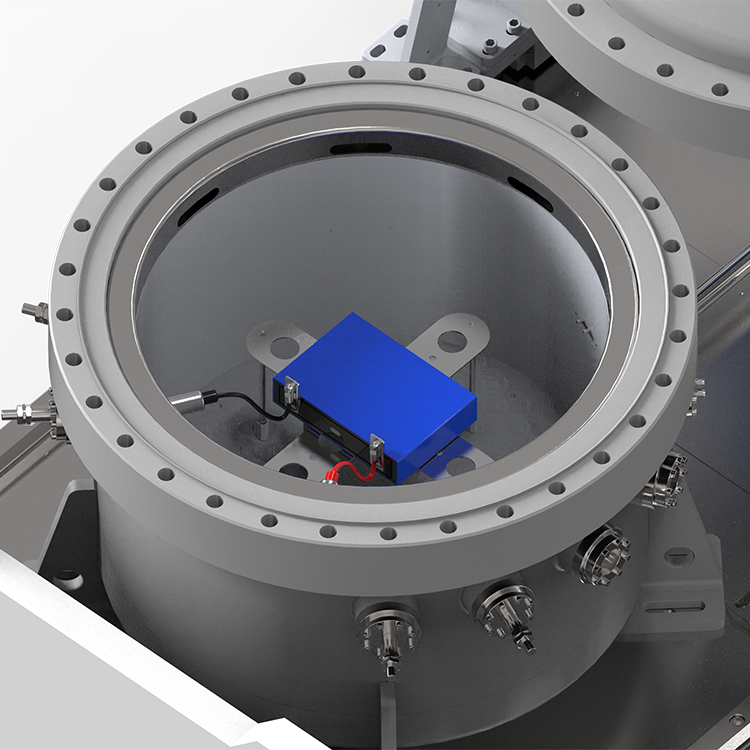

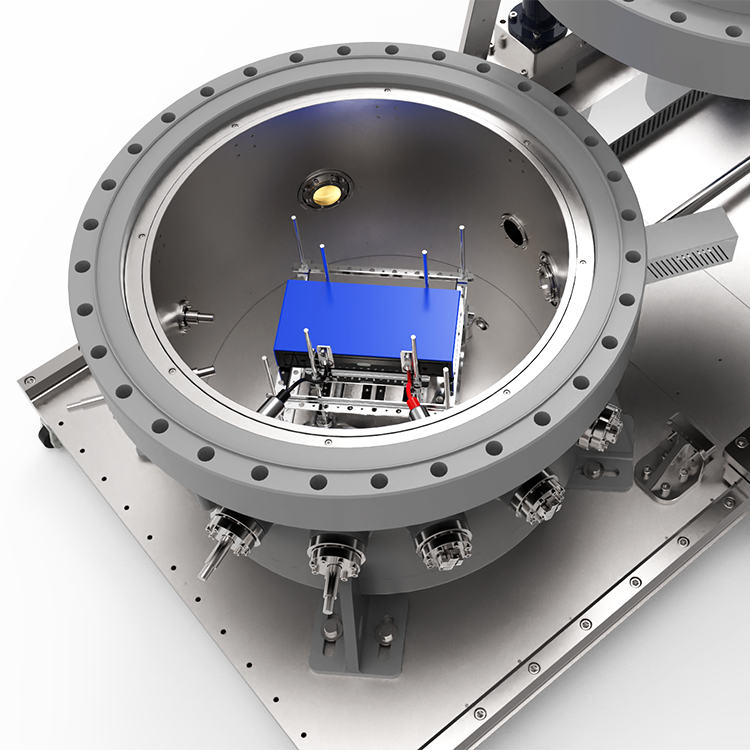

800 mm Furnace for Large Cells and Modules
Adiabatic Runaway & Gas Pressure Coupled Analysis
High Sensitivity Self-Heating Detection
Auxiliary Heating Wire Acceleration

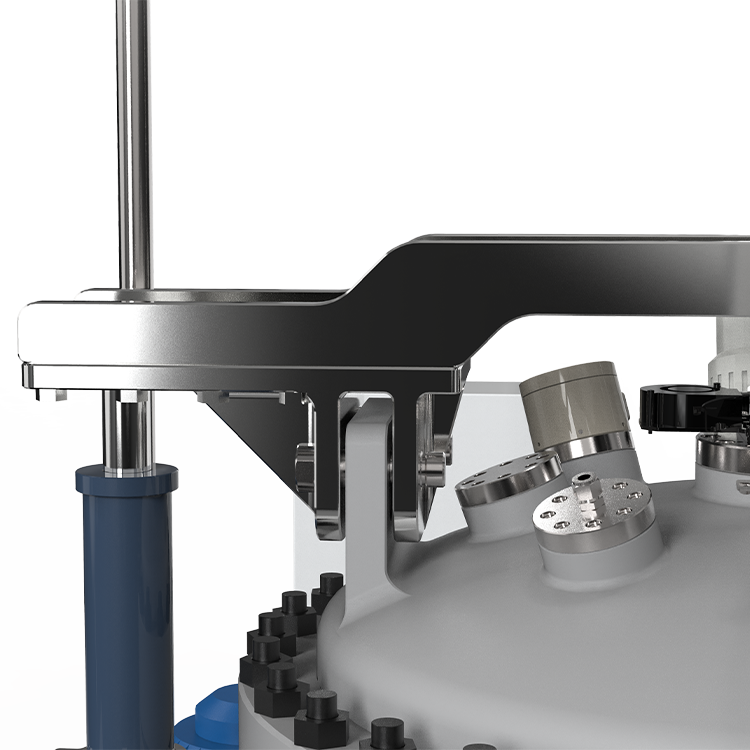

Enhanced Pressure Safety System
Specifications
| Adiabatic Furnace Dimensions | 800 mm (Diameter) × 520 mm (Depth) |
| Self-exothermic Detection Sensitivity | 0.01–0.02 ℃/min, adjustable via software |
| Temperature Difference between Furnace and Sample in Constant Temperature | ≤1 °C |
| Temperature Control Range | RT–300 °C, with a low-temperature module reaching -25 °C |
| Temperature Tracking Rate | 0.02–15 °C/min |
| Sealed Canister Pressure Range | 0–2 MPa |
| Maximum Nail Penetration Stroke | Up to 200 mm (through software settings) |
| Maximum Current-carrying Capacity of Charge/Discharge Electrode Posts | -1000–1000 A |
